NavigationDrawer

Material Design Navigation Drawer component.

Navigation Drawer is a panel slides in horizontally from the left or right edge of a page to show primary destinations in an app.

ft.NavigationDrawer(
    controls=[
        ft.NavigationDrawerDestination(label="Item 1"),
        ft.NavigationDrawerDestination(label="Item 2"),
        ft.NavigationDrawerDestination(label="Item 3"),
    ],
    tile_padding=ft.Padding(top=10),
)
NavigationDrawer
Navigation drawer extended

Inherits: AdaptiveControl

Properties

  • bgcolor - The color of the navigation drawer itself.
  • controls - Defines the appearance of the items within the navigation drawer.
  • elevation - The elevation of the navigation drawer itself.
  • indicator_color - The color of the selected destination indicator.
  • indicator_shape - The shape of the selected destination indicator.
  • selected_index - The index for the current selected NavigationDrawerDestination or null if no destination is selected.
  • shadow_color - The color used for the drop shadow to indicate elevation.
  • tile_padding - Defines the padding for destination controls.

Events

  • on_change - Called when selected destination changed.
  • on_dismiss - Called when the drawer is dismissed.

Examples​

Live example

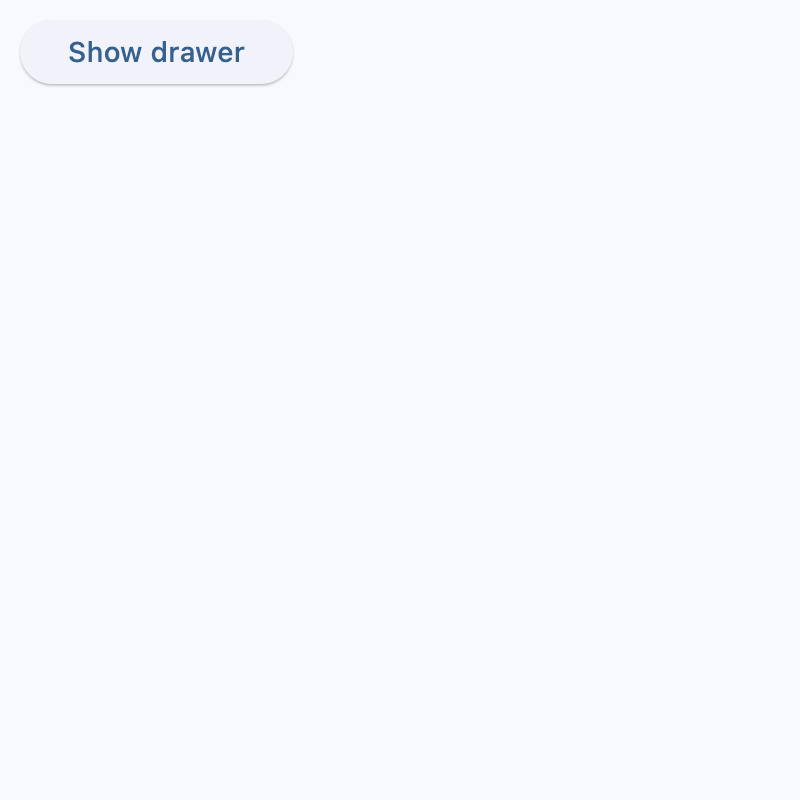

Start-aligned drawer​

import flet as ft


def main(page: ft.Page):
    async def handle_show_drawer():
        await page.show_drawer()

    def handle_dismissal(e: ft.Event[ft.NavigationDrawer]):
        print("Drawer dismissed!")

    async def handle_change(e: ft.Event[ft.NavigationDrawer]):
        print(f"Selected Index changed: {e.control.selected_index}")
        await page.close_drawer()

    page.drawer = ft.NavigationDrawer(
        on_dismiss=handle_dismissal,
        on_change=handle_change,
        controls=[
            ft.Container(height=12),
            ft.NavigationDrawerDestination(
                label="Item 1",
                icon=ft.Icons.DOOR_BACK_DOOR_OUTLINED,
                selected_icon=ft.Icon(ft.Icons.DOOR_BACK_DOOR),
            ),
            ft.Divider(thickness=2),
            ft.NavigationDrawerDestination(
                icon=ft.Icon(ft.Icons.MAIL_OUTLINED),
                label="Item 2",
                selected_icon=ft.Icons.MAIL,
            ),
            ft.NavigationDrawerDestination(
                icon=ft.Icon(ft.Icons.PHONE_OUTLINED),
                label="Item 3",
                selected_icon=ft.Icons.PHONE,
            ),
        ],
    )

    page.add(
        ft.SafeArea(
            content=ft.Button(
                content="Show drawer",
                on_click=handle_show_drawer,
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)
position-start

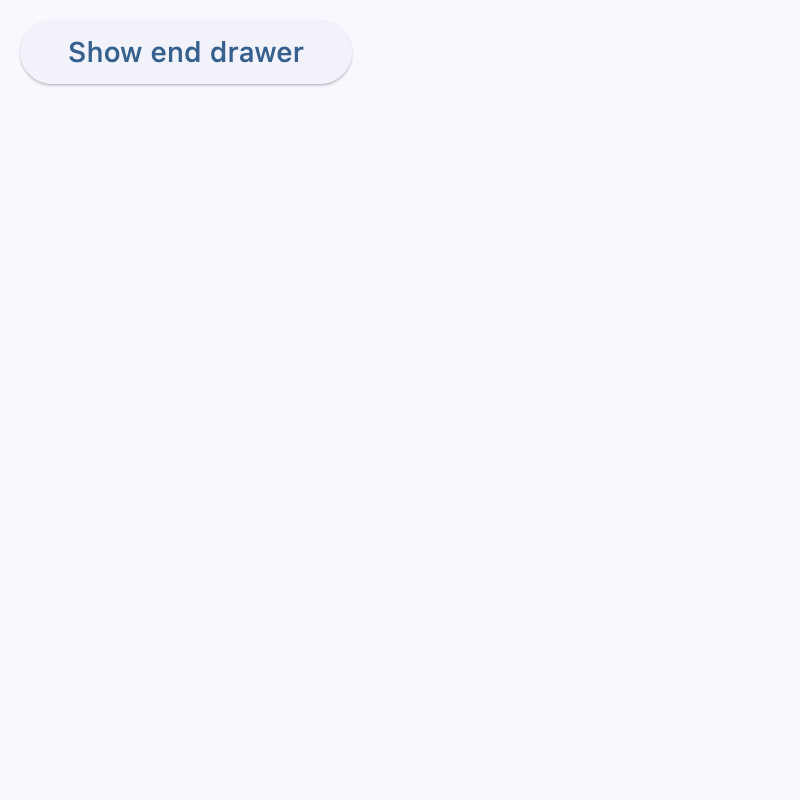

End-aligned drawer​

import flet as ft


def main(page: ft.Page):
    async def handle_show_drawer():
        await page.show_end_drawer()

    def handle_dismissal(e: ft.Event[ft.NavigationDrawer]):
        print("Drawer dismissed!")

    async def handle_change(e: ft.Event[ft.NavigationDrawer]):
        print(f"Selected Index changed: {e.control.selected_index}")
        await page.close_end_drawer()

    page.end_drawer = ft.NavigationDrawer(
        on_dismiss=handle_dismissal,
        on_change=handle_change,
        controls=[
            ft.NavigationDrawerDestination(
                icon=ft.Icons.ADD_TO_HOME_SCREEN_SHARP,
                label="Item 1",
            ),
            ft.NavigationDrawerDestination(
                icon=ft.Icon(ft.Icons.ADD_COMMENT),
                label="Item 2",
            ),
        ],
    )

    page.add(
        ft.SafeArea(
            content=ft.Button(
                content="Show end drawer",
                on_click=handle_show_drawer,
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)
position-end

Properties​

bgcolorclass-attributeinstance-attribute​

bgcolor: Optional[ColorValue] = None

The color of the navigation drawer itself.

controlsclass-attributeinstance-attribute​

controls: list[Control] = field(default_factory=list)

Defines the appearance of the items within the navigation drawer.

The list contains NavigationDrawerDestination items and/or other controls such as headlines and dividers.

elevationclass-attributeinstance-attribute​

elevation: Optional[Number] = None

The elevation of the navigation drawer itself.

indicator_colorclass-attributeinstance-attribute​

indicator_color: Optional[ColorValue] = None

The color of the selected destination indicator.

indicator_shapeclass-attributeinstance-attribute​

indicator_shape: Optional[OutlinedBorder] = None

The shape of the selected destination indicator.

selected_indexclass-attributeinstance-attribute​

selected_index: int = 0

The index for the current selected NavigationDrawerDestination or null if no destination is selected.

A valid selected_index is an integer between 0 and number of destinations - 1. For an invalid selected_index, for example, -1, all destinations will appear unselected.

shadow_colorclass-attributeinstance-attribute​

shadow_color: Optional[ColorValue] = None

The color used for the drop shadow to indicate elevation.

tile_paddingclass-attributeinstance-attribute​

tile_padding: Optional[PaddingValue] = None

Defines the padding for destination controls.

Events​

on_changeclass-attributeinstance-attribute​

on_change: Optional[ControlEventHandler[NavigationDrawer]] = None

Called when selected destination changed.

on_dismissclass-attributeinstance-attribute​

on_dismiss: Optional[ControlEventHandler[NavigationDrawer]] = None

Called when the drawer is dismissed.
